Home > CO2 Diffusers > Mixer Reactor CO2 Diffusers > Mixer Reactor CO2 Diffuser - Large For Aquariums Up To 500l

Large Mixer Reactor CO2 Diffuser For Aquariums Up To 500L

£17.99
Mixer Reactor CO2 Diffuser - Large for Aquariums up to 500L



Key Facts

  • For 1,000 - 2,000 Litres / Hour flow rate.
  • Efficient CO2 diffusion.
  • Traps CO2 in the reactor housing until completely diffused into the aquarium water.
  • Dual impellers mix the CO2 with water.
  • Compact size enables use internally or externally of the aquarium.
  • Electricity is not required, since it uses the flow of water from the filter.
  • Easy to clean and maintain.
  • Will fit 12/16mm and 16/22mm (using spacers). Click here for tubing size advice
  • Height: 33cm
  • Diameter: 5.5cm

Description

A Mixer Reactor Diffuser uses the outlet from a filter or pump to mix CO2 directly with the water before entering the aquarium. The process works by mixing the CO2 and water at the top of the diffuser using dual impellers, which spin using the force of water entering the reactor.

The outlet is located at the bottom of the reactor chamber, and therefore only fully diffused CO2/water exits the device because the CO2 will remain at the top of the unit it is fully diffused. The result is that near 100% CO2 absorption can be achieved.

The reactor will fit 12/16mm tubing, but spacers are also included to enable fitting of 16/22mm tubing.

Instructions

  • Reactors are installed on the return / outflow tubing from a filter as the water is reintroduced to the aquarium.
  • Cut or replace your filter tubing with PVC tubing.
  • Attach filter tubing to corresponding inlet/outlet of the reactor.
  • Connect CO2 supply to CO2 inlet of the reactor.
  • Turn filter and CO2 on and allow reactor to fill with water.
  • Invert (turn upside down) the reactor to eject any trapped air.
  • Adjust CO2 rate until desired level of dosing is achieved.


Customer Reviews

Average Rating

Individual Reviews

Mohamed S. Verified Buyer 25th Jan 2020
If you're using 12mm/16mm I think it will be fine, but for the 16mm/22mm don’t buy as it will leak through the connection If you're using 12mm/16mm I think it will be fine, but for the 16mm/22mm don’t buy as it will leak through the connection
Ivor G. Verified Buyer 26th Nov 2016
Excellent way to inject CO2 into the aquarium water Excellent way to inject CO2 into the aquarium water
Semmad P. Verified Buyer 22nd Apr 2016
Très bonne diffusion mais il y a quand même un bruit non négligeable quand les hélices tournent. Très bonne diffusion mais il y a quand même un bruit non négligeable quand les hélices tournent.
Serina E. Verified Buyer 29th Jan 2016
It works very well but it is essential to have enough flow to run the reactor otherwise the propeller will stop. Be aware that it is a bit difficult to get a waterproof seal when using the adapters. It works very well but it is essential to have enough flow to run the reactor otherwise the propeller will stop. Be aware that it is a bit difficult to get a waterproof seal when using the adapters.
Stuart . Verified Buyer 18th Dec 2015
Product is very good, silently runs diffuses brilliantly. Product is very good, silently runs diffuses brilliantly.
Paul W. Verified Buyer 18th Dec 2015
A good product, at a good price, and delivered quickly. Excellent service. Thank you. A good product, at a good price, and delivered quickly. Excellent service. Thank you.
Anthony P. Verified Buyer 12th Dec 2015
Works really really well. No bubbles in the tank and my co2 lasts longer as there is no co2 wastage what so ever with this and is hidden in my cabinet. My only gripe and as others have said is the inlet and outlet sizes. My pipe is 19/27mm and flow is restricted through dropping to 16/22 and then to 12/16 for this. My spacers also leaked but Teflon tape sorted that out. Other than that it is excellent Works really really well. No bubbles in the tank and my co2 lasts longer as there is no co2 wastage what so ever with this and is hidden in my cabinet. My only gripe and as others have said is the inlet and outlet sizes. My pipe is 19/27mm and flow is restricted through dropping to 16/22 and then to 12/16 for this. My spacers also leaked but Teflon tape sorted that out. Other than that it is excellent
Florence W. Verified Buyer 12th Nov 2015
It works really well, no co2 bubbles in the tank 100% diffusion as advertised. Not top marks because the spacers for 16/22mm tubing restrict flow a bit which is a shame, otherwise it's a very good product. It works really well, no co2 bubbles in the tank 100% diffusion as advertised. Not top marks because the spacers for 16/22mm tubing restrict flow a bit which is a shame, otherwise it's a very good product.
Alex G. Verified Buyer 21st Sep 2015
Really good product, does what it's meant to and don't get any co2 coming inot the tank. The impellers make a bit of a rattle noise but nothing too severe. Really good product, does what it's meant to and don't get any co2 coming inot the tank. The impellers make a bit of a rattle noise but nothing too severe.
Louise B. Verified Buyer 18th Sep 2015
I've been using it for some time and I can definitely see the results - don't get any CO2 bubbles in my tank which I used to hate! Just wish the made a proper 16/22 variety rather than using spacers. I've been using it for some time and I can definitely see the results - don't get any CO2 bubbles in my tank which I used to hate! Just wish the made a proper 16/22 variety rather than using spacers.

Photo Viewer

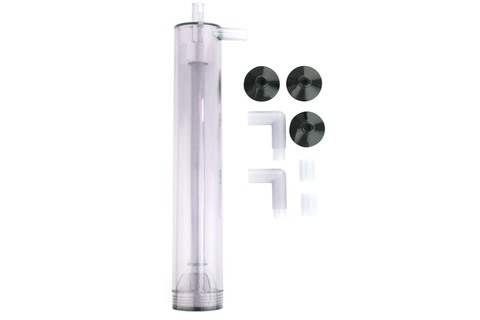

Large Size ISTA Max Mix Mixer Reactor Diffuser for planted aquariums
