Home > CO2 Diffusers > Inline Atomizer CO2 Diffusers > Blizzard Inline Atomizer CO2 Diffuser - For 16/22mm Hose

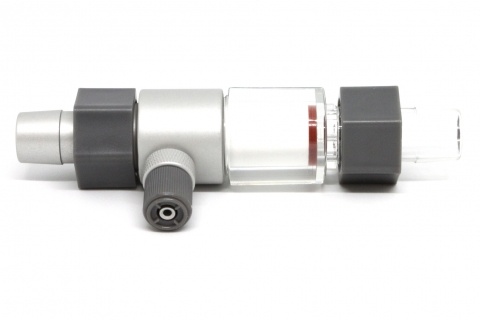

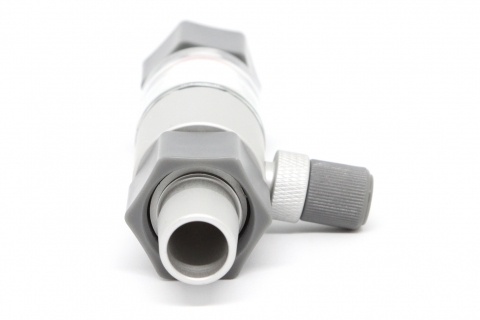

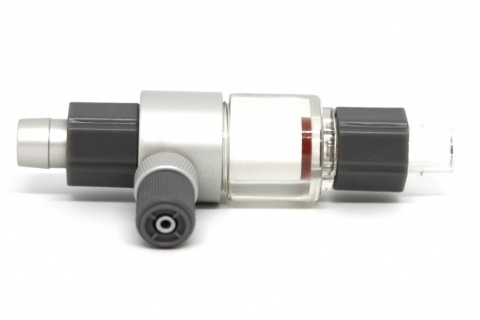

Blizzard Inline Atomizer CO2 Diffuser For 16/22mm Hose

£27.99
Blizzard Inline Atomizer CO2 Diffuser - for 16/22mm Hose
£10.99
Replacement Ceramic Tube for 16/22mm Blizzard Inline Atomizer


Key Facts

  • Suitable for 16mm/22mm tubing (16mm internal / 22mm external). Click here for tubing size advice
  • For aquariums up to 500L.
  • Creates a mist of very fine bubbles.
  • Excellent diffusion rates due to high surface area of small bubbles.
  • Bubbles are in the flow of water as it enters the aquarium, so remain in suspension in the water for longer.
  • Diffuser is located outside the aquarium which allows for easy maintenance.
  • No equipment in the aquarium itself.
  • Choose the size for your filter tubing.
  • Requires 2 bar / 30 PSI pressure to function (provided by all CO2 Supermarket regulators).


Description

The Inline Atomizer CO2 Diffuser is arguably the most well known product used for CO2 diffusion, and is a firm favourite with planted aquarium specialists around the world. Designed for use with various filter size tubing, this CO2 diffuser sits inline between your filter and the filter outlet, ensuring that the CO2 has as much contact time with the water as possible.

The atomizer diffuser dissolves CO2 very efficiently, and provides a stream of very tiny bubbles which exit directly from the filter outlet. Because the bubbles are in the flow of current from the filter this ensure the bubbles remain in suspension for longer and further improves the level of diffusion.

Furthermore, because the diffuser is deployed outside the aquarium, maintenance is a very easy.

Instructions

  • Inline atomizers are to be installed on the return / outflow tubing from a filter as the water is reintroduced to the aquarium.
  • Cut or replace your filter tubing with PVC tubing.
  • Push tubing on to each end of the diffuser.
  • Screw the retaining nuts back over the tubing to hold in place.
  • Unscrew the small nut on the CO2 inlet.
  • Feed CO2 tubing through the nut and onto the CO2 inlet.
  • Tighten the nut onto the CO2 inlet to secure the tubing.
  • Turn CO2 on, allow pressure to build within the diffser.
  • Adjust dosing / bubble rate accordingly.


Customer Reviews

Average Rating

Individual Reviews

Simon W. Verified Buyer 24th Jan 2024
Works as described and very useful to be able to clean and replace the ceramic tube Works as described and very useful to be able to clean and replace the ceramic tube
David C. Verified Buyer 27th Nov 2023
Very nice diffuser. Tiiiiiny bubbles! Very nice diffuser. Tiiiiiny bubbles!
Lister W. Verified Buyer 11th Oct 2023
Installed in line on my Fluval 307 filter system, using the basic CO2 system originally purchased from you. I replaced the Fluval pipes under the tank with quality aquarium 16/22 hose and put the new diffuser on the return flow. System works excellently and my previous problems with blocked diffusers within the tank (possibly from fine substrate) are no more. Fitting was a bit fiddly as the tank was read more... Installed in line on my Fluval 307 filter system, using the basic CO2 system originally purchased from you. I replaced the Fluval pipes under the tank with quality aquarium 16/22 hose and put the new diffuser on the return flow. System works excellently and my previous problems with blocked diffusers within the tank (possibly from fine substrate) are no more. Fitting was a bit fiddly as the tank was full, but the fish and I all survived. Nice straightforward piece of kit, that is quietly doing the job.
Harry O. Verified Buyer 19th Sep 2023
Easy to connect up and work great. Also bought a spare tube which is good to have on-hand. Easy to connect up and work great. Also bought a spare tube which is good to have on-hand.
Chris K. Verified Buyer 8th Sep 2023
Very small water leakage when I first installed - quite possibly my fault. Disassembled, put some PTFE tape around the leaking thread, and reinstalled - now working perfectly Very small water leakage when I first installed - quite possibly my fault. Disassembled, put some PTFE tape around the leaking thread, and reinstalled - now working perfectly


Small logo for CO2 Supermarket
Reply from CO2 Supermarket
There should be no need to use PTFE tape as a seal is made on a washer inside the diffuser, so if it's leaking then it just means the connection is a bit loose and needs to be tighten up in order to make a good seal.

Vincent M. Verified Buyer 25th Jul 2023
Do the job, as usual co2 supermarket is a very good site :) Do the job, as usual co2 supermarket is a very good site :)
Sarah S. Verified Buyer 25th May 2023
The CO2 coming out looks like milk the bubbles are so small and I've actually been able to reduce my CO2 dosing because this is more efficient than my previous diffuser. The CO2 coming out looks like milk the bubbles are so small and I've actually been able to reduce my CO2 dosing because this is more efficient than my previous diffuser.
Augustas V. Verified Buyer 15th Nov 2022
Easy to set up and works flawlessly! Easy to set up and works flawlessly!
Paul G. Verified Buyer 22nd Sep 2022
I bought this to replace my UP inline diffuser which had got clogged up and I much prefer this one. It produces really small bubbles and it can be dismantled either to be cleaned or replace the ceramic tube as necessary. I can really recommend it. I bought this to replace my UP inline diffuser which had got clogged up and I much prefer this one. It produces really small bubbles and it can be dismantled either to be cleaned or replace the ceramic tube as necessary. I can really recommend it.
Katherine S. Verified Buyer 18th Jul 2022
Fast delivery and very effective diffuser! Fast delivery and very effective diffuser!
