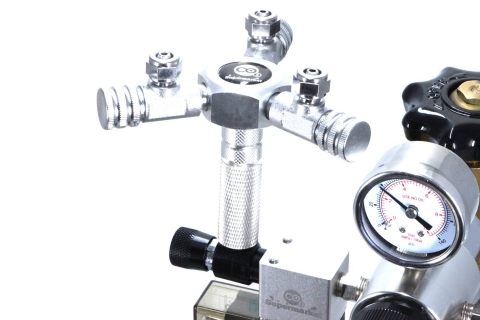

Output Splitter For CO2 Regulator Installation Instructions

Buy These Splitters Here



Step-by-Step Instructions

Step 1 - Familiarise yourself with the parts (regulator not included):

Step 2 - Remove collar from needle valve and place small O-ring seal over end:

Step 3 - Check there is an O-ring seal at the end of the extension. The seal should be seated at the bottom of the thread:

Step 4 - Screw the extension that has the seal in position onto needle valve:

Step 5 - Add small (should already be in position) and large O-ring seal to the end of the the splitter nozzle:

Step 6 - Screw splitter into the extension and tighten:

You have completed the splitter installation.
