SodaStream Cylinder Refilling Adapter

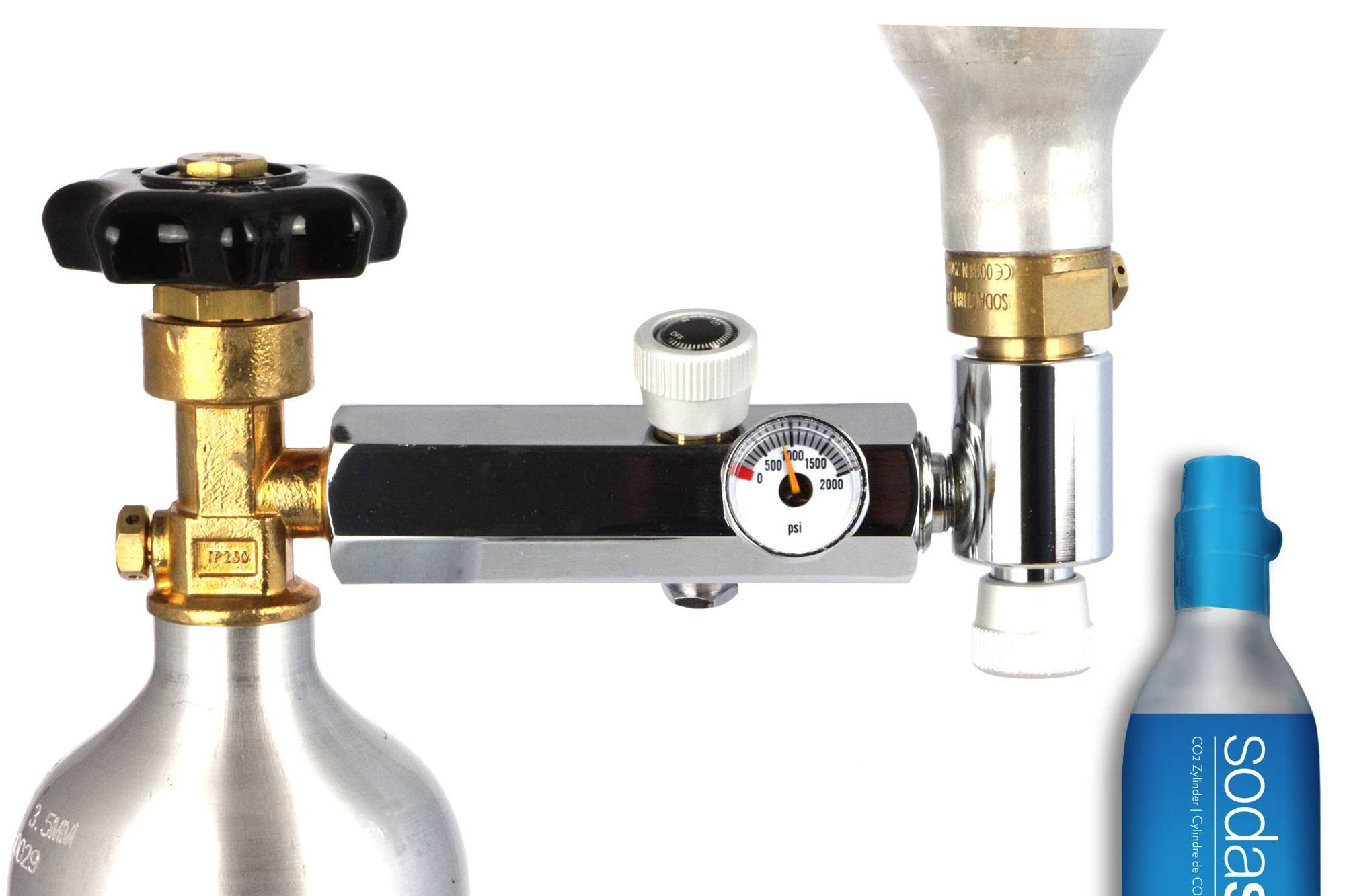

Our SodaStream Cylinder Refilling Adapter gives you the freedom and ability to refill your SodaStream cylinders at a fraction of the price you pay for exchanging at a retailer. The refilling adapter is used to safely refill SodaStream cylinders from larger donor cylinders. It is designed to connect to either a CGA 320 or DIN 477 / W21.8 / BS 341 No. 8 donor cylinder, and then connect either directly to the SodaStream cylinder or via a optional high pressure hose as shown in the product photos.

Customer safety is always our primary consideration when designing new products, which is why our refilling adapter includes a pressure gauge to ensure the pressure of the donor cylinder will not exceed the pressure specification of the recipient cylinder, a on/off knob for easy and direct control of the refilling process, and a dump / purge valve to eject the residual gas within the connection between donor and recipient cylinder once refilling is complete.

Instructions

• Connect the refill adapter to the parent / donor cylinder.
• Screw the SodaStream adapter into the refill adapter.
• Screw the SodaStream cylinder into the adapter.
• Open the valve on the parent / donor cylinder to release the gas.
• Turn the shutoff valve to release the gas.
• Turn the knob of the SodaStream valve to inject gas into the cylinder.
• You will hear gas flowing into the cylinder. Refilling takes roughly 30 seconds.
• Once refilling is complete, stop the CO2 by turning the shutoff valve.
• Isolate the SodaStream cylinder by turning the adjuster knob.
• Release the residual gas by opening the dump / purge valve.
• Remove the SodaStream cylinder from the adapter.
• Repeat the refill process for each SodaStream cylinder.
• Once finished, close the valve on the parent / donor cylinder.
• Click here to read the full SodaStream Cylinder Refill Adapter instructions
