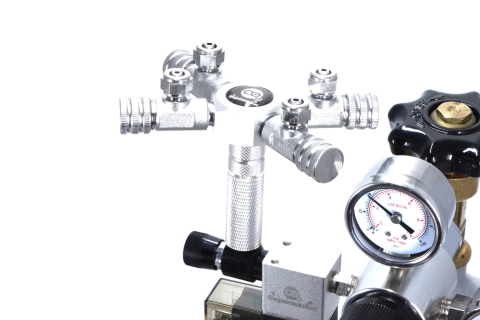

Aquarium 4 Way CO2 Splitter For Solenoid Or Regulator

Using a splitter on your regulator you can split a single CO2 source to three separate outputs. For example, if you need to power multiple diffusers or have more than one aquarium.

A splitter saves the cost of purchasing and maintaining more regulators and CO2 cylinders.

Easy to install; simply screws onto your existing regulator needle valve. Supplied with short and long extension to ensure the splitter assembly is clear of the regulator body or pressure gauges.

Instructions

• Unscrew compression collar from needle valve or regulator.
• Place small O-ring over needle valve nipple.
• Locate the extension provided with the splitter set. Check there is an O-ring at the end of the extension. The O-ring should be seated at the bottom of the thread.
• Screw the extension end that has the O-ring onto needle valve.
• Locate the splitter assembly and check there is a small and large O-ring deployed on the male thread.
• Screw the splitter onto the extension and tighten fully.
• Adjust flow of CO2 for each output using the needle valves.
• Click here to read the full CO2 Regulator Splitter setup guide
